H 1900 SPLINE® A reliable aluminum wheelset now with Ratchet LN Technology for extended eMTB tours.

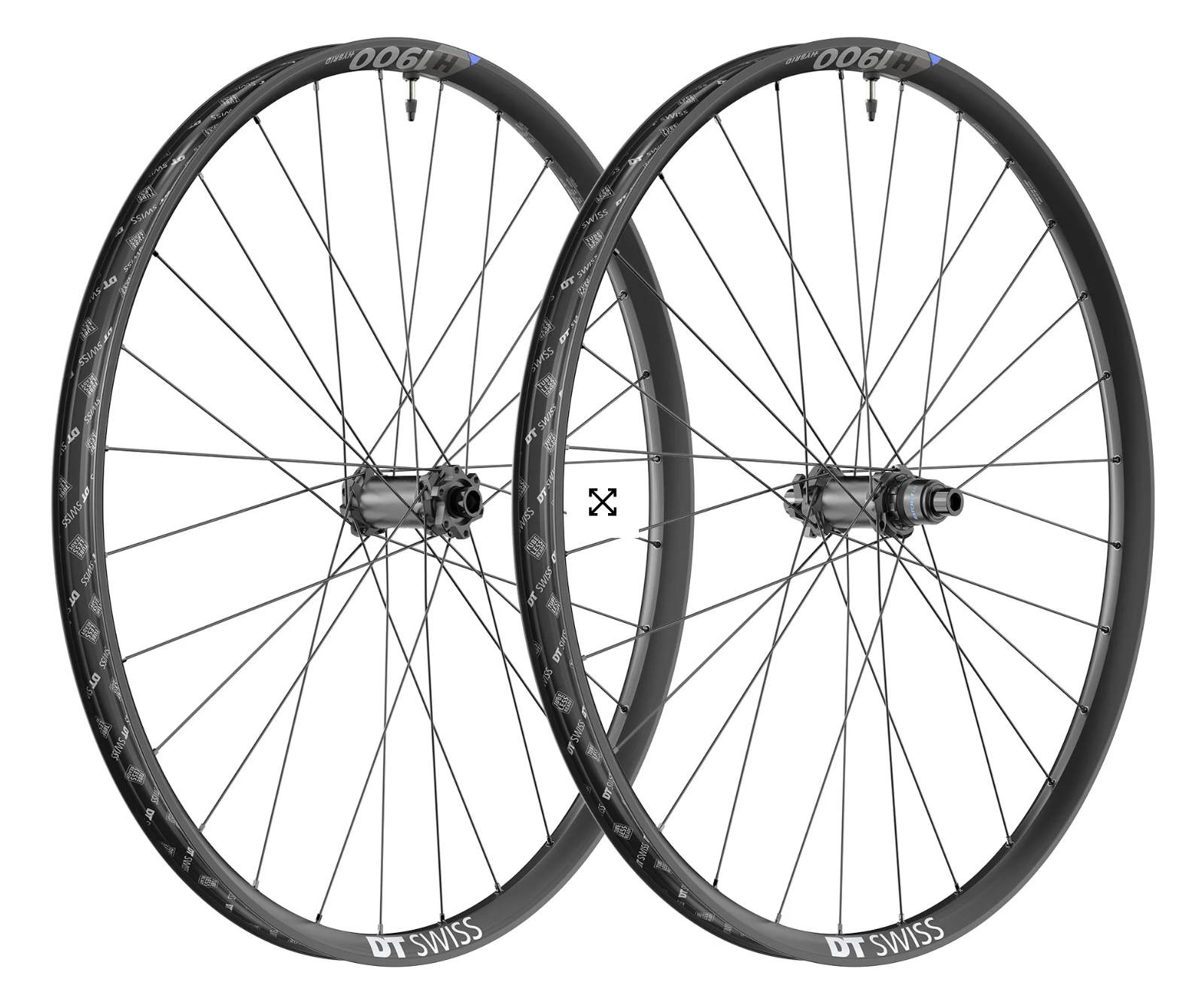

he DT Swiss H 1900 SPLINE 29″ 30  6 bolt Boost Disc Hybrid Wheelset – Now with ratchet freehub

With the DT Swiss H 1900 SPLINE wheelset in 29″ you equip your e-bike with a durable, robust chassis. Thanks to the 30 mm rim width, you can ride wide tyres and low air pressures, which means you benefit from a lot of traction. The 370 Boost hubs for 6-bolt brake rotors are firmly connected to the rims via straight pull spokes and Pro-Lock nipples. This ensures stiff, durable and low-maintenance wheels. In addition, the rear hub has a Ratchet LN freehub with 18 teeth. This results in improved power transmission and more propulsion compared to the previous model.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain

Wheel Size:

29″

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type: center-lock  disc (Boost)

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

Technical Information – Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

30-622

Inner Width:

30 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

Technical Information – Front Hub:

Type:

370 straight pull

Over Locknut Dimension:

15 x 110 mm thru-axle

Body Material: aluminium

Technical Information – Rear Hub:

Type:

370 straight pull

Over Locknut Dimension:

12 x 148 mm thru-axle

Body Material:

aluminium

Freehub Body Material:

steel

Freehub Body:

Ratchet LN 18

Technical Information – Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Hybrid 1, straight pull

Spoke Material:

steel

Nipple Type:

DT Pro Lock Squorx Pro Head

Nipple Material:

aluminium

Approved For:

Weight Limit: 150 kg (system weight)

Features:

• boost wheels for E-MTBs
• with Ratchet LN freehub
• increased stability due to straight pull spokes and Pro-Lock nipple thread

29″ set (front 15×110 Boost + rear 12×148 Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Contents:

• 1 x DT Swiss H 1900 SPLINE 29″ 30 6 bolt Boost Disc Hybrid wheelset (front and rear wheel)
• 2 x DT Swiss tubeless valves
• 2 x rolls DT Swiss tubeless rim tape
